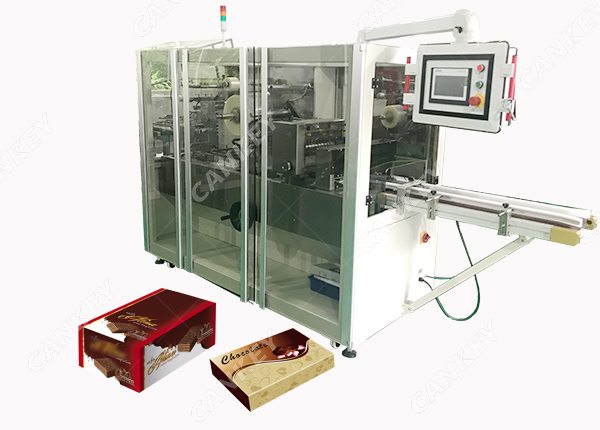

Chocolate Box Cellophane Wrapping Machine

Category:

Description

Chocolate Box Cellophane Wrapping Machine Working Principle:

After the machine control system is started, the packaging actions such as chocolate box pushing, film lowering, film cutting, air blowing, corner folding, upper folding, lower folding, box hooking, chocolate box output, shaping and heat sealing are automatically completed in sequence. In addition, there is an tear tape that is bonded to the film and packaged for easy unpacking.

Sweet Box Wrapping Machine Application:

This cellophane wrapping machine is widely used in the automatic film wrapping of various single box-type items in the industries of medicine, health care products, food, cosmetics, stationery, audio and video products, etc.(tear tape is available)

cellophane wrapping machine application

Chocolate Box Cellophane Wrapping Machine Characteristic:

  • Model 300S adopts a fully enclosed plexiglass cover, beautiful, hygienic, dustproof. It is especially suitable for users who have requirements for hygienic environment.
  • Equipped with Japanese Omron control system and PLC touch screen operation interface. The track does not leave a chocolate box, and the operation is more stable and reliable.
  • Using the new double insurance mechanism, the machine does not need to stop and other parts will not be damaged when the machine runs out of synchronization.
  • The new double rotary film cutter guarantees years of continuous use of the machine.
  • The packaging speed can be adjusted steplessly, and the film will not be delivered if there is no chocolate box. Products of different specifications can be packaged by replacing a small number of parts.
  • The tear tape can be printed with corporate logos or names of various colors, and can be equipped with anti-counterfeiting lasers and phosphorescence (fluorescence will appear under ultraviolet light), which is one of the best anti-counterfeiting methods and is very suitable for the packaging of brand-name products.

chocolate box wrapping machine factory

Chocolate Box Wrapping Machine Service:

After-sales service:

The warranty period is 1 year from the delivery date. During the warranty period, the wrapping machine is damaged or does not work properly due to quality problems. We are responsible for free repairs and provides relevant maintenance and repair knowledge. If it is damaged or does not work properly due to improper use by the user, the customer will pay for it.

Operation guide:

After the machine arrives at the destination, in addition to sending the operation manual, we will also arrange for the engineer to guide through the video to ensure that the machine can run stably.



Technical Parameter:

Model CKBTB-300S
Packaging material film and gold tear tape
Packing speed 40~80 boxes/min packs/min
Max.package size (L)240*(W)120*(H)60mm
Power 220V 50Hz  5kw
Machine weight 760kg
Machine dimensions (L)2001*(W)923*(H)1779mm



    Contact Us for Price
