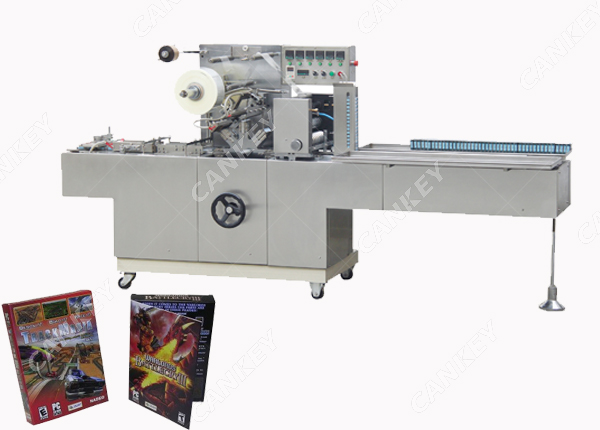

Automatic CD Cellophane Wrapping Machine Factory

Category:

Description

The automatic cellophane wrapping machine is good for hard boxes. It adopts BOPP film to be folded on sides of boxes. The overwrapping machine can have perfect packaging work without wasting film. Because of low price, it can save packaging cost & reduce labor cost. This machine uses PLC control, which is more human friendly without strict limitation by package sizes.

CD Cellophane Wrapping Machine Advantags:

The CD overwrapping machine can defend takeproof moisture and proof dust, etc. The overwrapping machine improve the product level, increase the productions additional value, and it can be linked to with cartoning machine to compose packing line.

cd packing line

How Does CD Cellophane Wrapping Machine Work?

  1. After the materials are manually put into the hopper,the film is wrapped by the back pusher through the film cutting machine and then pushed into the corresponding mold cavity of the turret.
  2. When the rotarytower turns 90°, fold the film on one side from the outside to the inside by the action of the folding film swing arm in the pre-sealed part, then the pre-sealed swing arm folds the film on the other side from the outside to the inside and pre-seals it. After the pre-sealing is completed, the folded swing arm and the pre-sealed swing arm are retracted separately.
  3. When the rotarytower turns another 45°, the long-seal component makes the box long-seal, when the rotary tower turns another 45°, the pusher of the discharging propeller pushes the box out of the turret mold cavity and then enters the side seal part. The box is sequentially fold on both sides, top fold, bottom fold, front and back side sealing.
  4. Propelled by the box behind, enter the shaping parts, and then complete the packaging process.

Automatic Cellophane Wrapping Machine Features:

  1. The machine provides high wrapping speed from 30-150 boxes one minute, meet different packing requirements.
  2. Adopting the servo motor to feed film. The speed and the length can adjust. Using the film smooth and length accurate.
  3. Automatic zero adjustment and reset function, the equipment is humanized and intelligent. Easier to use, operate, maintain and repair;
  4. Replace a few parts, can pack different size of boxes.

Technical Parameters:

Model BTB-300B
Packaging material film and gold tear tape
Packing speed 40~80 boxes/min
Max.package size (L)240*(W)120*(H)60mm
Power 220V 50Hz  5kw
Machine weight 600kg
Machine dimensions (L)3000*(W)800*(H)1500mm



    Contact Us for Price
